Installation guide - Blackbaud

If you are using Blackbaud as your organization's learning environment it may be of interest to configure an LTI between Digiexam and Blackbaud to allow for a more streamlined assignment, quiz and exam process.

The LTI between Digiexam and Blackbaud allows for the provisioning of Digiexam accounts directly from the learning management system, and allows you to link Digiexam assignments, quizzes and tests directly into your Blackbaud courses. Students will then be able to start up their Digiexam app logged in directly through the integration and begin working without additional exam IDs.



This guide will demonstrate, step-by-step, how to configure the LTI between Digiexam and Blackbaud. It is important to note that only system administrators of Blackbaud and Digiexam users with account manager permissions will be able to configure this LTI. Contact your system administrator for your organization if you wish to build an LTI between Digiexam and Blackbaud.

External link:

Step 1: Configuring the LTI

Change the portal to Core in the upper left of your Blackbaud environment.

Blackbaud 1.png

Figure 1

Step 2: Integration settings

Select "Settings" and choose "Integration Settings"

Blackbaud 2.png

Figure 2

Step 3: Create a Learning Tool

Go to Learning Tools from within your integration settings.

Blackbaud 3.png

Figure 3

Step 4: Configure Digiexam as a Provider

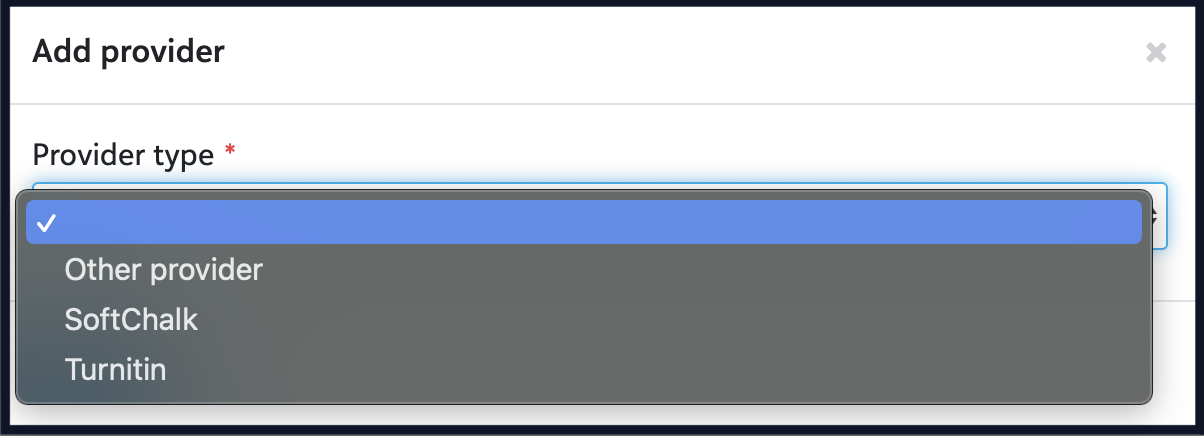

Choose "Other Provider" and add Digiexam as a provider.

Blackbaud 4.png

Blackbaud 5-7.png

Figure 4

Step 5: Enable the LTI and Use Credentials

Enable an LTI within your Digiexam environment.

Be sure to login to Digiexam as account manager. Navigate to the "organization" section of your  Digiexam environment and choose "Enable LTI integration."

Figure 5

Copy the values in Digiexam for: OAuth Consumer Key, OAuth Secret Key and paste them in the Blackbaud form as shown in figure 5.

Click on the Submit button in the Blackbaud form.

Step 6: Configure an Assignment

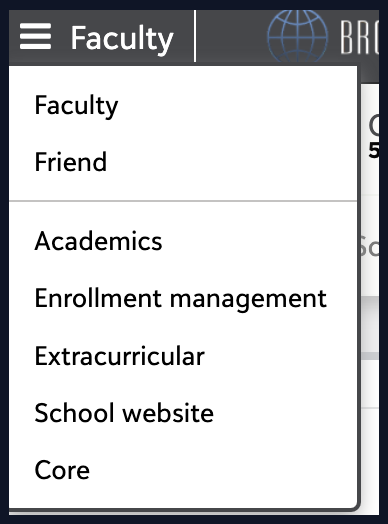

Navigate back to Blackbaud and choose "Faculty" from the hamburger menu.

Blackbaud 8.png

Figure 6

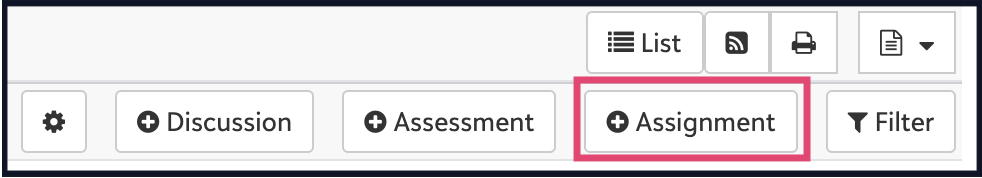

Select "Assignment Center" to create an assignment.

Blackbaud 9.png

Figure 7

Blackbaud 10.png

Figure 8

Make sure the fields (Title, Type, Learning Tool, Abbreviation, Max Points, Sections) marked below are filled out:

Blackbaud 11-14.png

Figure 9

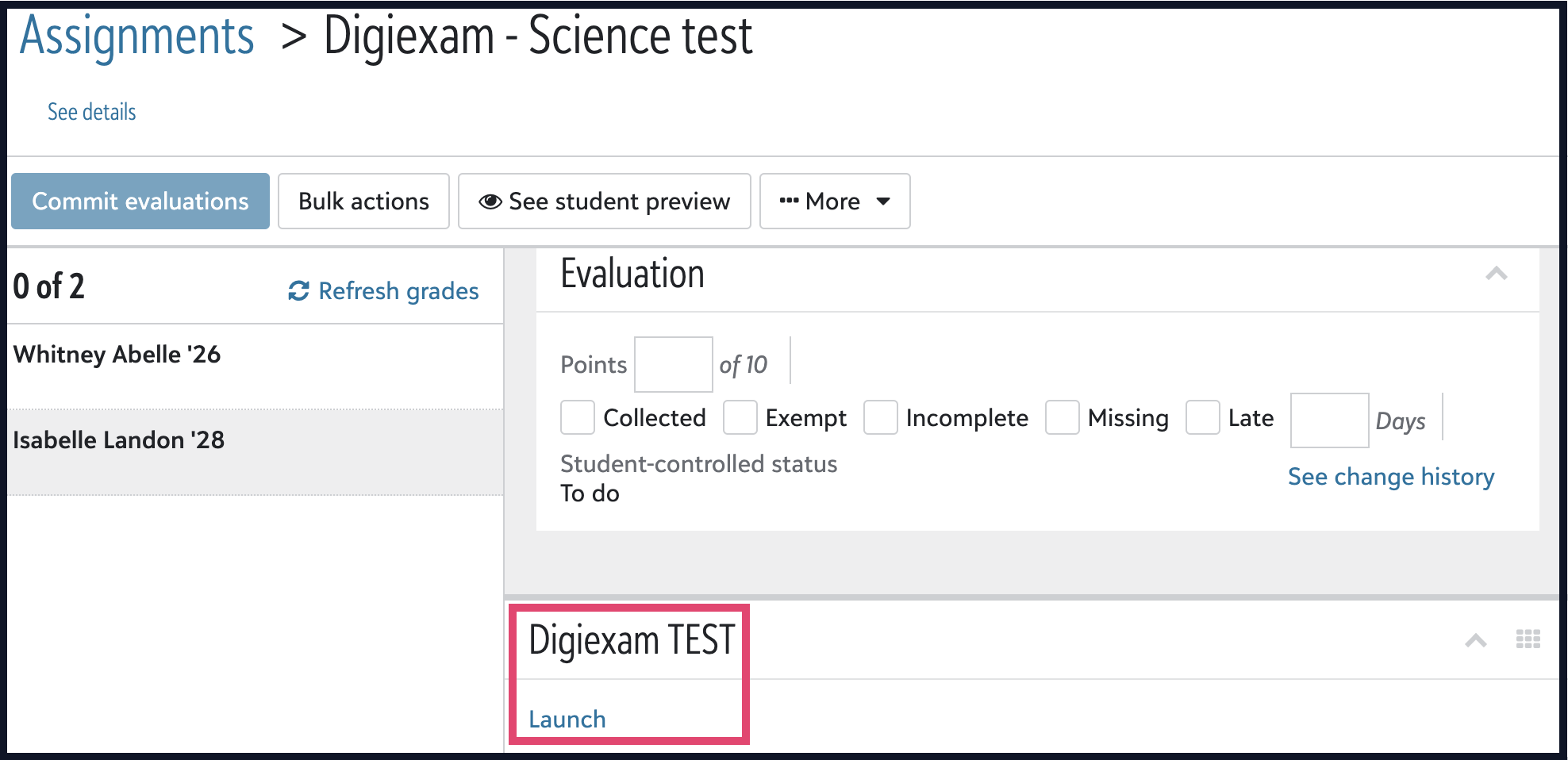

Once saved, you can find the assignment in your Assignment Center calendar. Click on the assignment to open the details and choose "launch" to then access Digiexam in the web through the assignment.

Blackbaud 15.png

Figure 10
