Install Basic LTI for Blackboard
Digiexam uses LTI extension "Content-Item Selection" to fetch exams and the extension "Outcomes" for grade syncing. Since Blackboard does not support these extensions for LTI out-of-the-box you first need to install the building block (plug-in) Basic LTI for Blackboard. This building block will add support for these features. Here is a step by step guide to install the building block:
1. Download the latest version package of Basic LTI for Blackboard from the download page (link).
2. Unzip the package

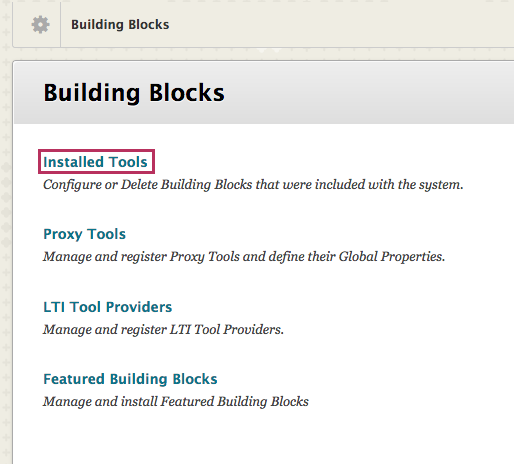

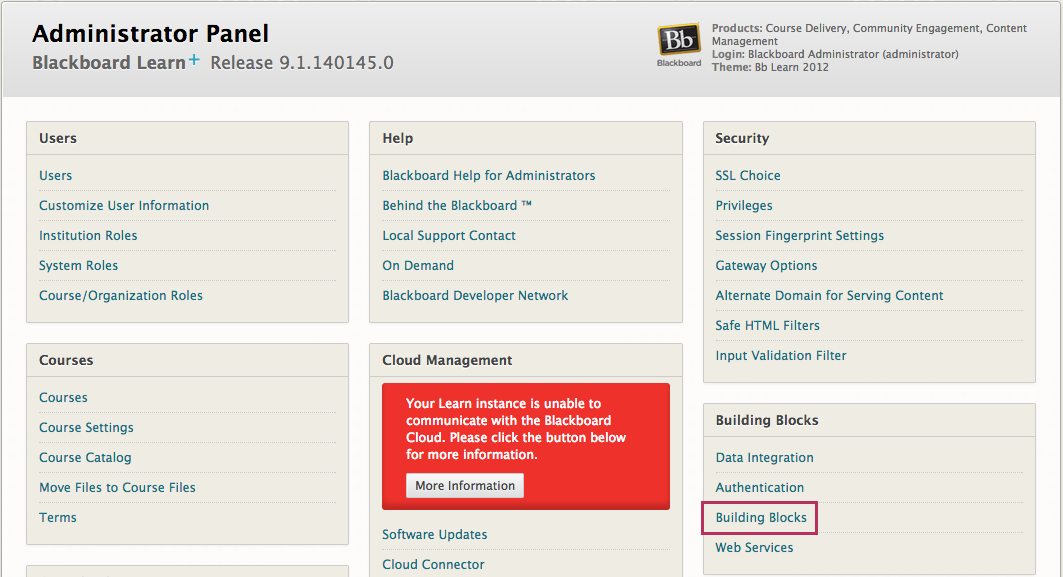

3. Login as administrator in Blackboard and go to -> System Admin -> Building Blocks -> Installed Tools (see figure 1-3)
Figure 1
Figure 2
Figure 3

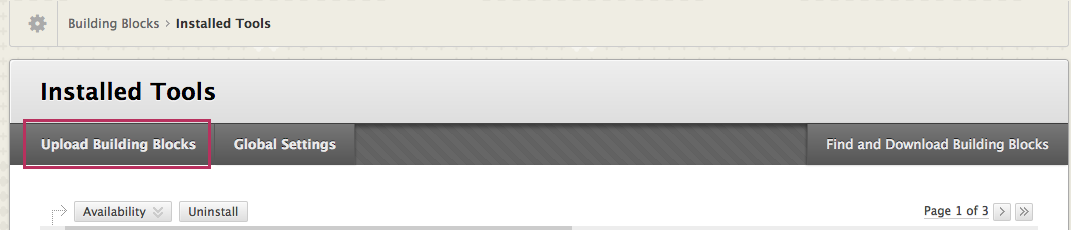

4. Click on "Upload Building Blocks" (see figure 4)
Figure 4

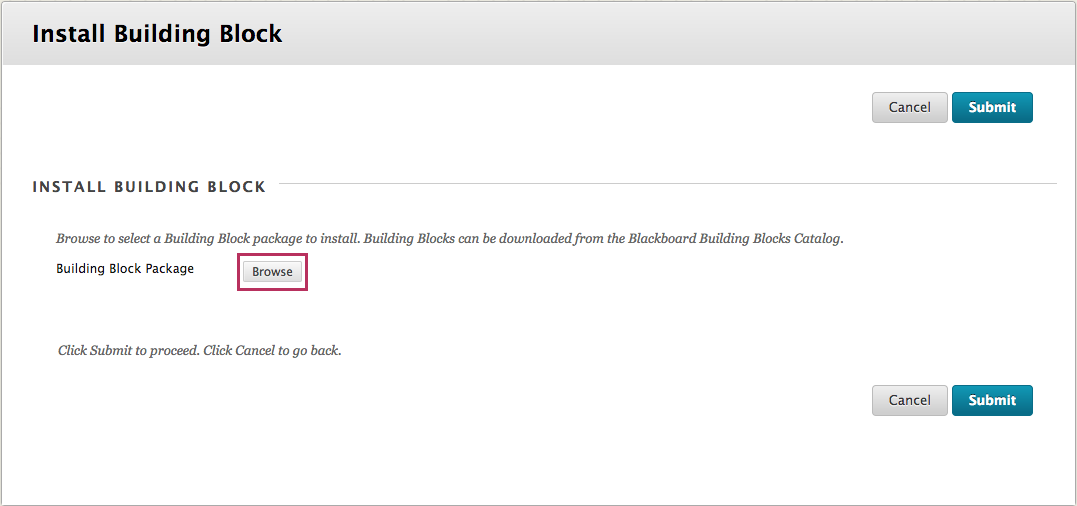

5. Click on "Browse" and select the unzipped ".war" file and upload it, then click on "Submit" (see figure 5-6)
Figure 5
Figure 6

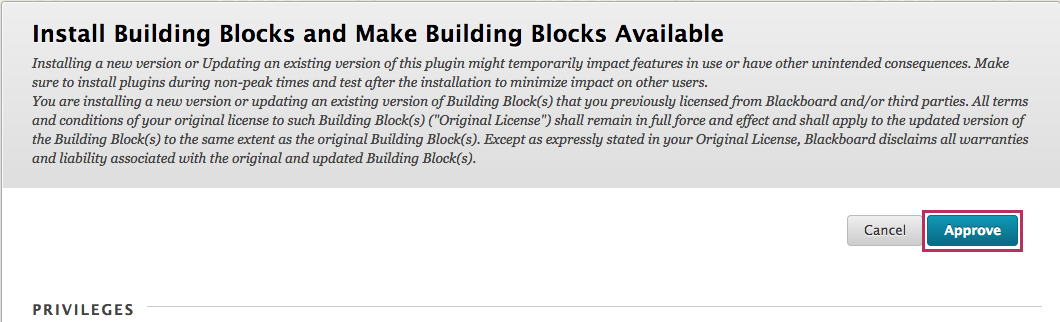

6. Click on "Approve" (see figure 7)
Figure 7

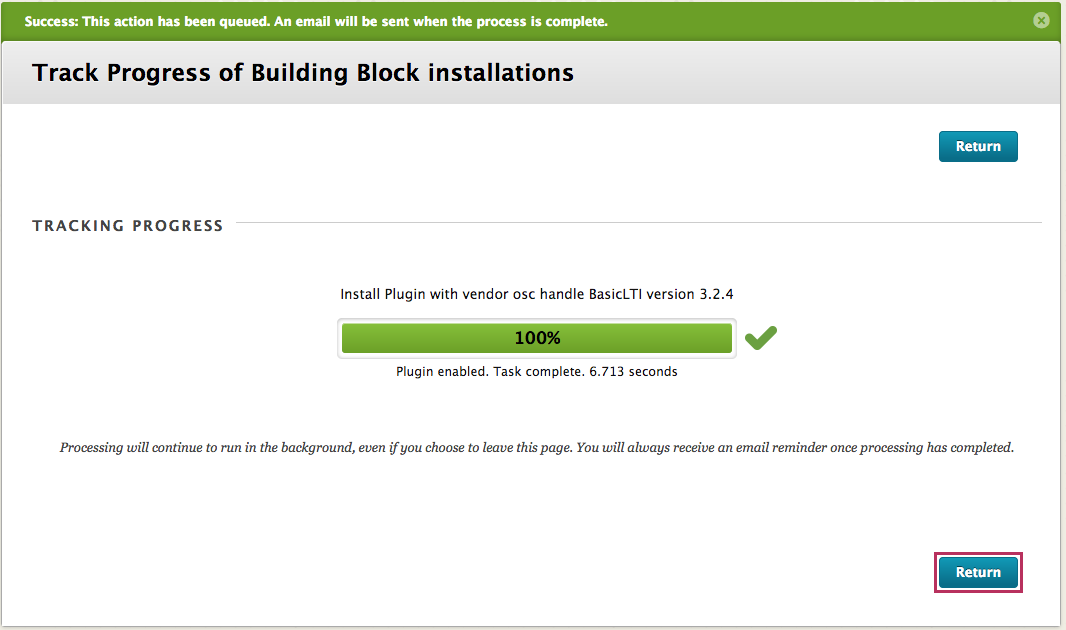

7. After the plugin has been installed, click on "Return" (see figure 8)
Figure 8
Configure Basic LTI tools
Register tool
1. You should now be back at "Installed Tools", if not, go to System Admin -> Building Blocks -> Installed Tools (see figure 9-11)
Figure 9
Figure 10
Figure 11

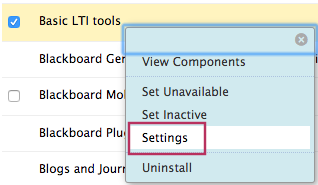

2. Find "Basic LTI tools" in the "Installed Tools" list and go to "Settings" in the "Basic LTI tools" drop-down menu (see figure 12-13)
Figure 12
Figure 13

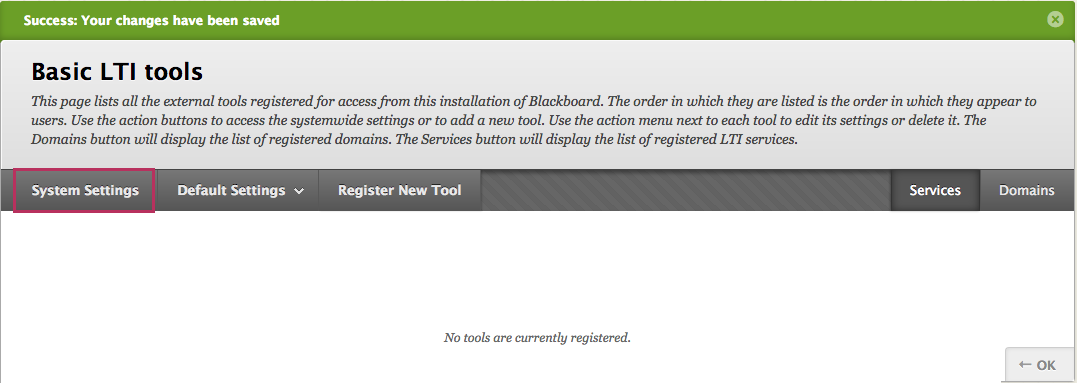

3. Click on "System settings" (see figure 14)
Figure 14
4. Tick the "Outcomes" checkbox and click on the "Submit" button (see figure 15)
Figure 15

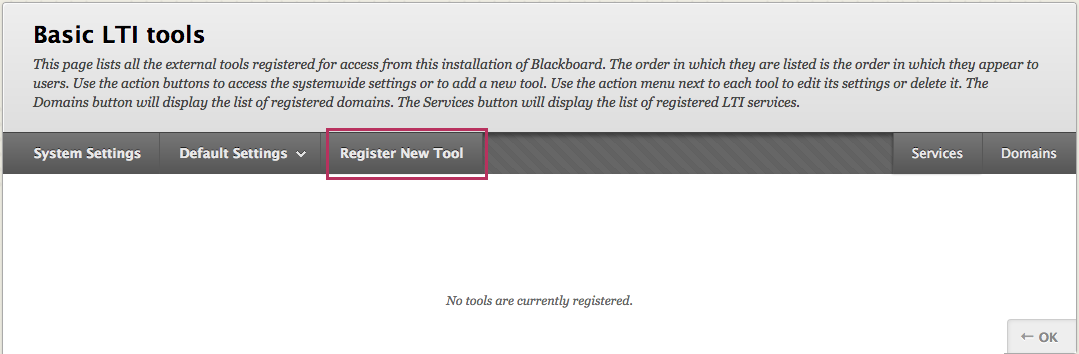

5. Click on "Register new tool"(see figure 16)
Figure 16

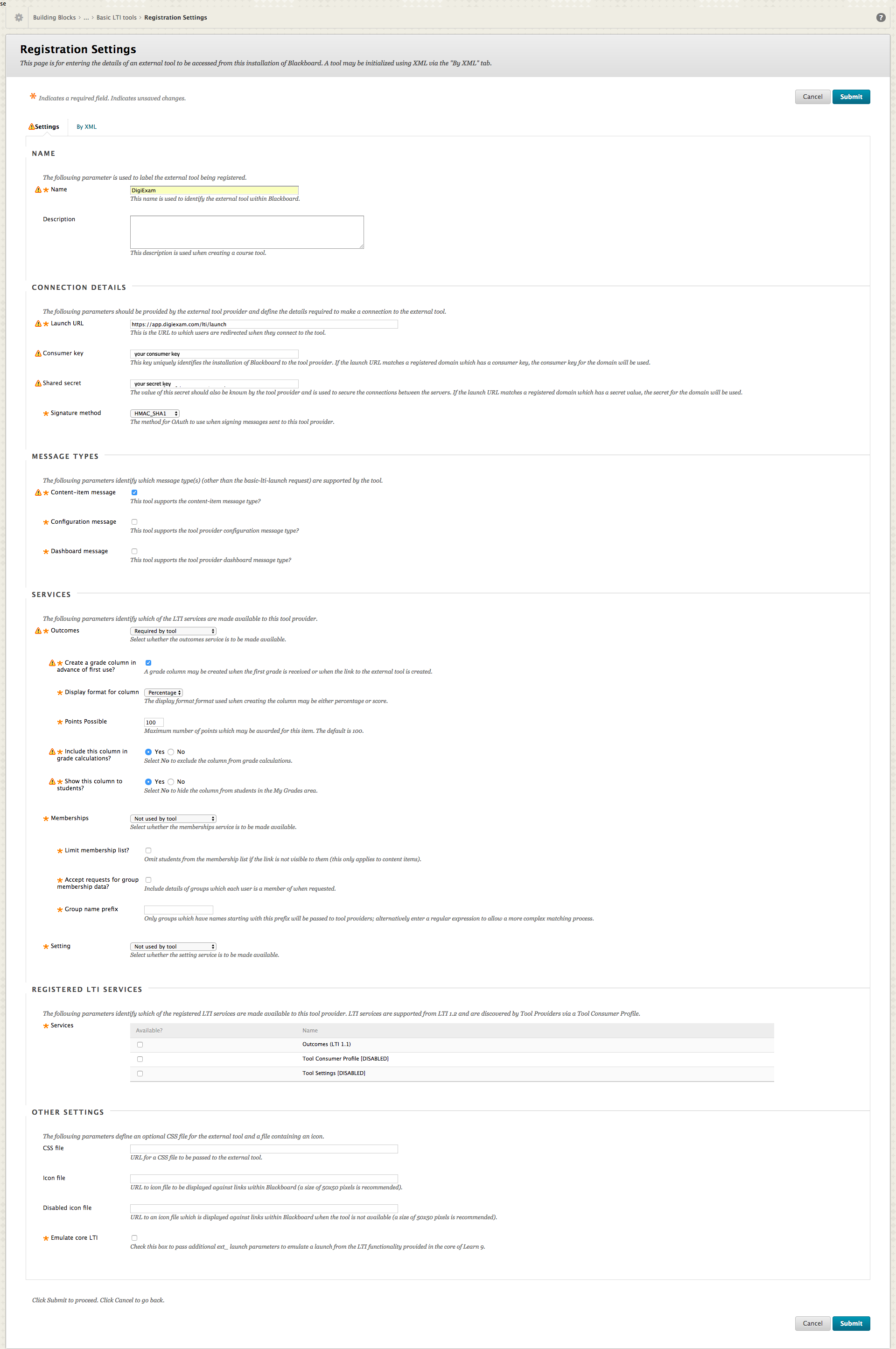

6. Enter the information as seen in figure 17 and then click on the "Submit" button (if you are having trouble seeing the text in the figure, right click on it and choose save as, save it to your computer and open it as a picture, you will then be able to zoom in).
Note that the "Launch URL" is different depending on which region you are using:
US region: https://app-us.digiexam.com/lti/launch
EU and rest of world: https://app.digiexam.com/lti/launch
Figure 17

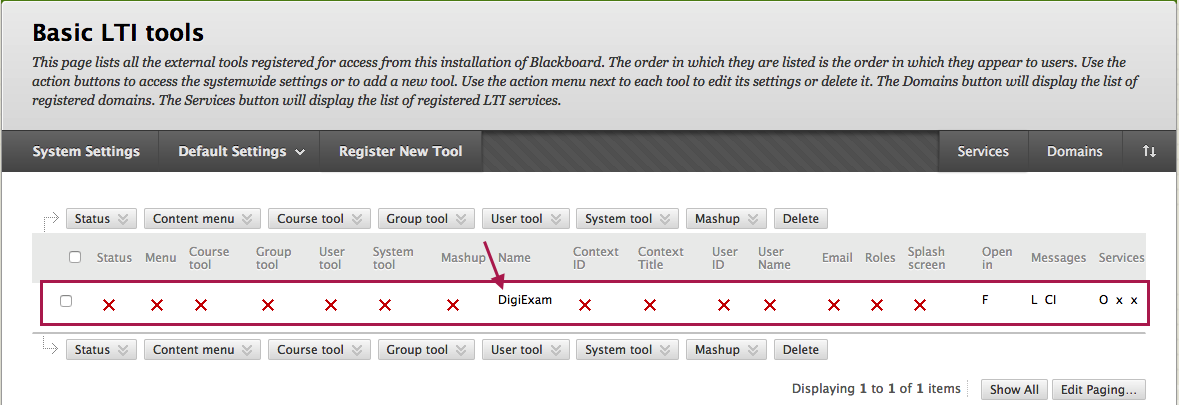

7. You should now be able to see the Digiexam tool in the "Basic LTI tools" settings (see figure 18)
Figure 18

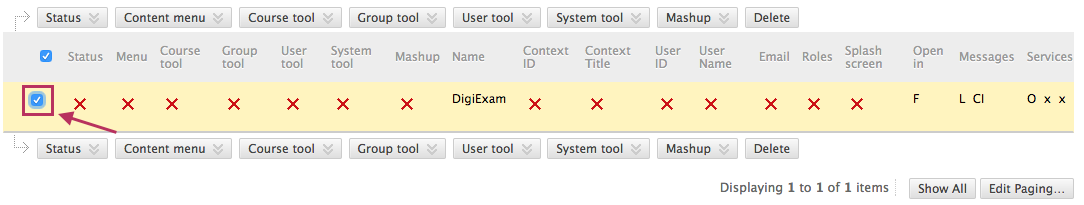

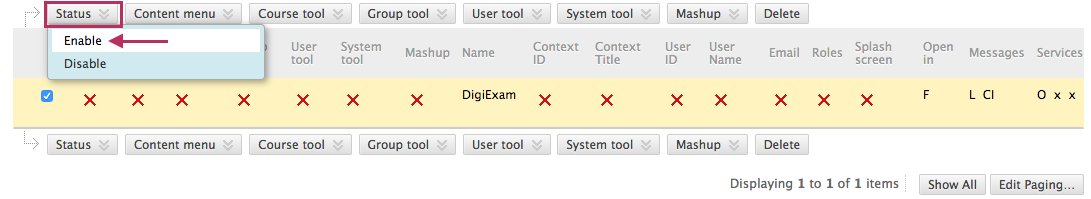

8. Tick the checkbox on the left-hand side (see figure 19) and then click on "Enable" in the "Status" drop-down menu (see figure 20)
Figure 19
Figure 20

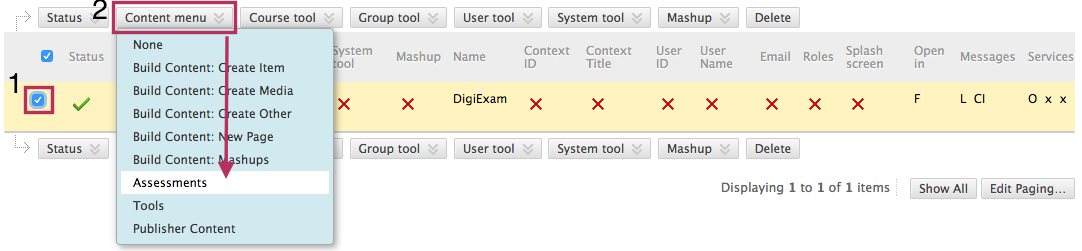

9. Tick the checkbox on the left-hand side again (see figure 21) and then click on "Assessments" in the "Content menu" drop-down menu (see figure 22)
Figure 21

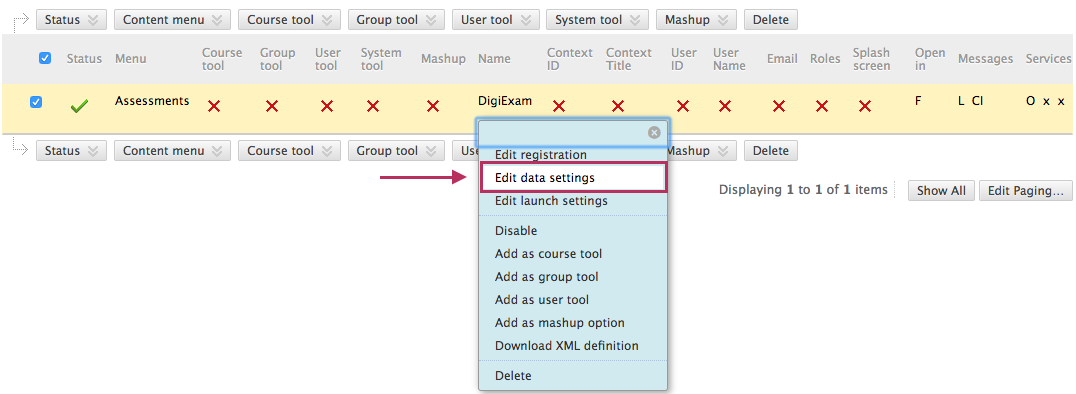

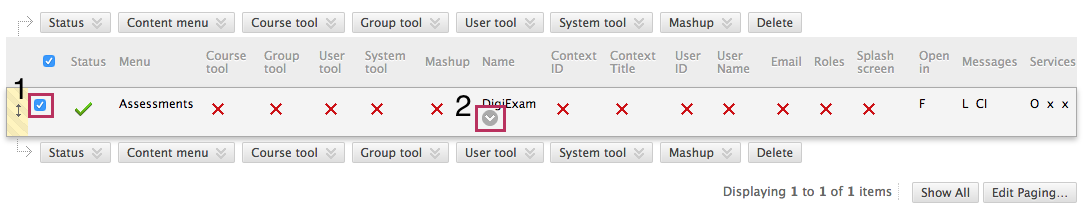

10. Tick the checkbox on the left-hand side again and then click on the "Arrow button" that appears under the "Name" columnt below "Digiexam" (see figure 22). Now click on "Edit data settings" in the drop-down menu (see figure 23)
Figure 22
Figure 23

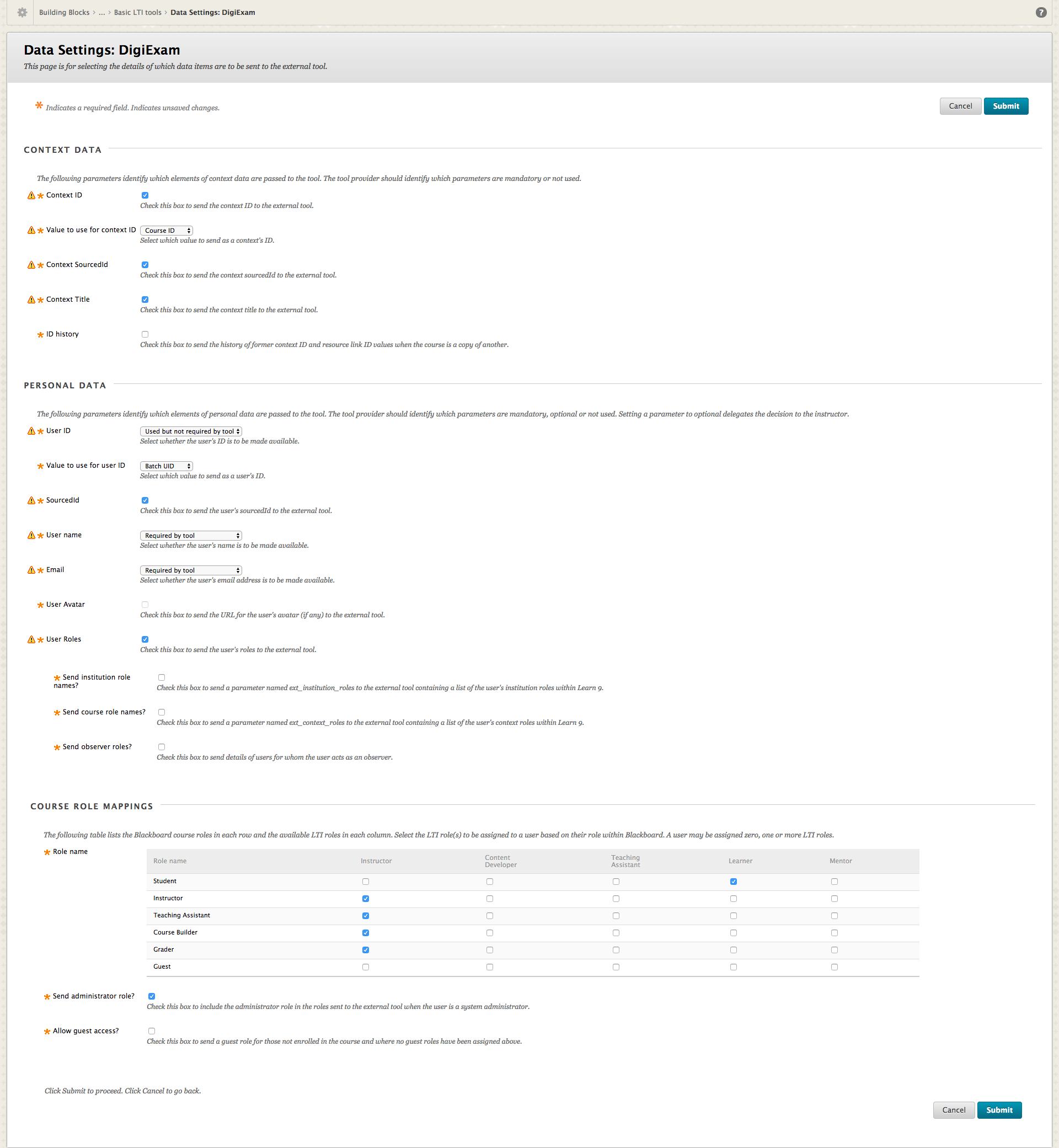

11. Enter the information as seen in figure 24 and then click on the "Submit" button (if you are having trouble seeing the text in the figure, right click on it and choose save as, save it to your computer and open it as a picture, you will then be able to zoom in).
Figure 24

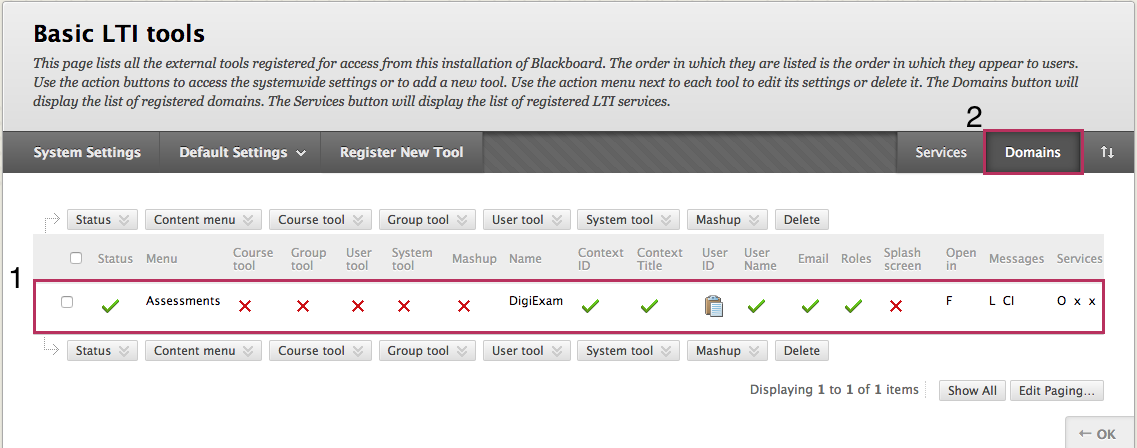

12. Check that "Context ID", "Context Title", "User ID", "User Name", "Email" and "RolesAt" look like the ones in figure 25, if not, go back and do step 10 and 11 again, then click on "Domains" in the top right corner (see figure 25)
Figure 25
13. Click on "Register New Domain" (see figure 26)
Figure 26

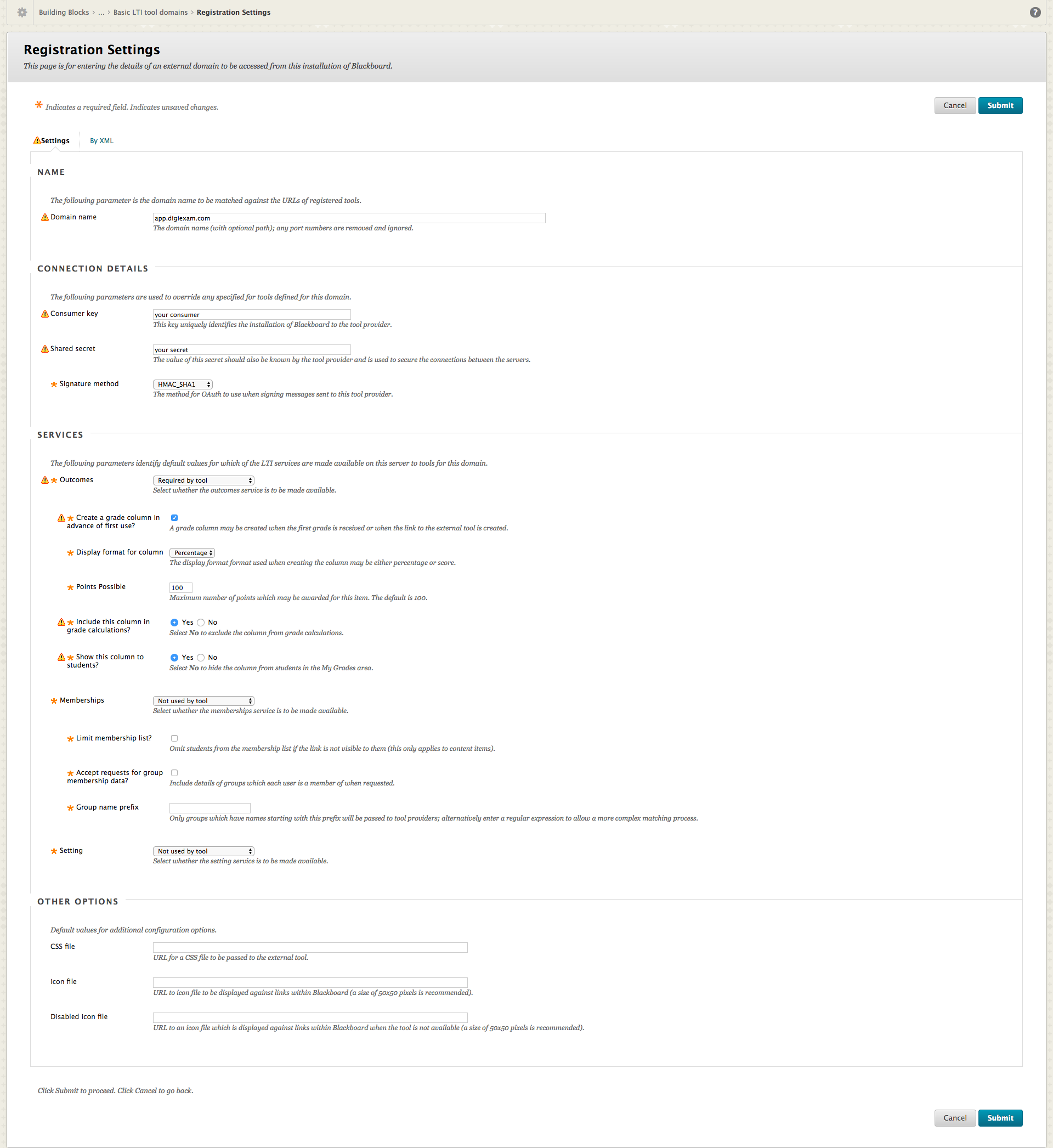

14. Enter the information as seen in figure 27 and then click on the "Submit" button (if you are having trouble seeing the text in the figure, right click on it and choose save as, save it to your computer and open it as a picture, you will then be able to zoom in).
Note that the "Domain name" is different depending on which region you are using:
US region: app-us.digiexam.com
EU and rest of world: app.digiexam.com
Figure 27

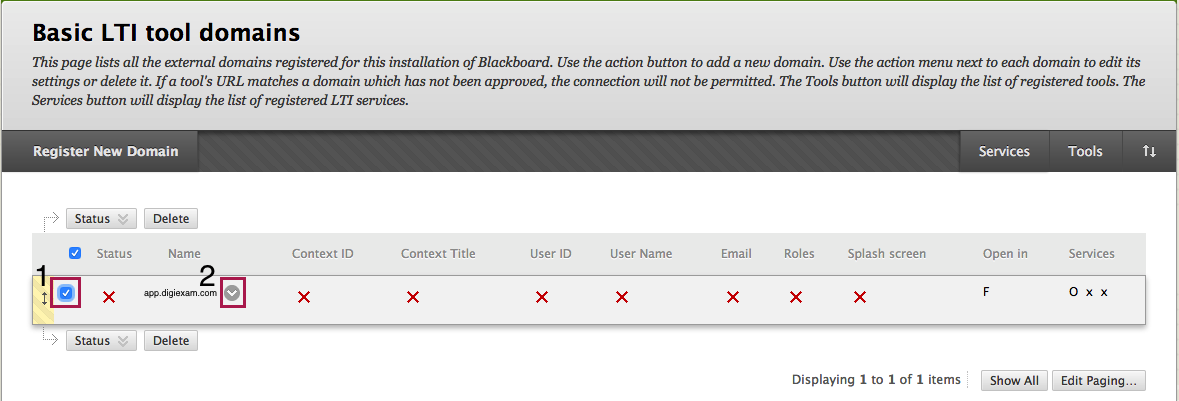

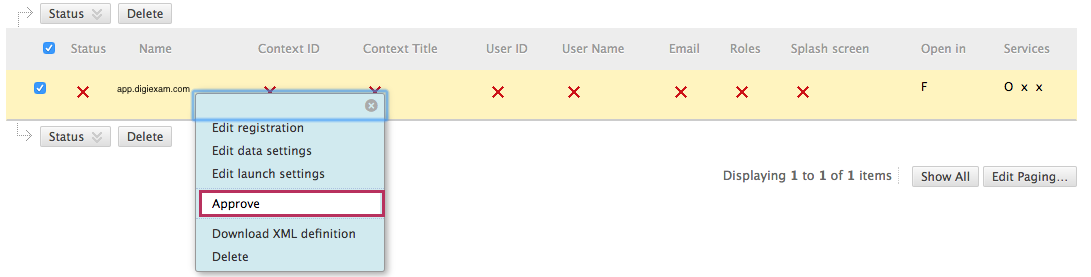

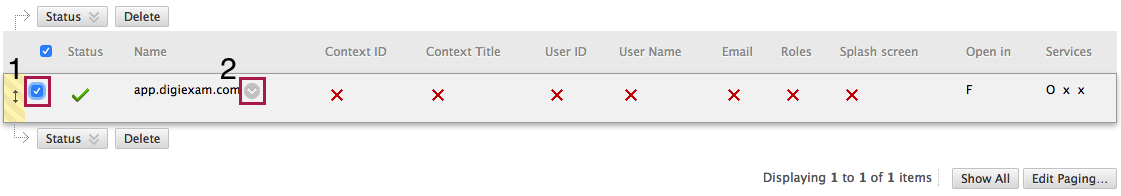

15. Select the domain by ticking the checkbox on the left hand side (figure 28), then click on the down-pointing arrow (figure 28) and finally click on "Approve" in the drop-down menu (figure 29).
Figure 28
Figure 29

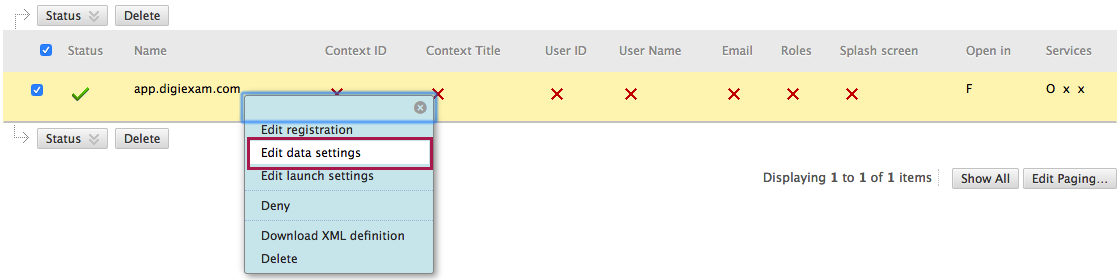

16. Select the domain again by ticking the checkbox on the left hand side (figure 30), then click on the down-pointing arrow (figure 30) and finally click on "Edit data settings" in the drop-down menu (figure 31).
Figure 30
Figure 31

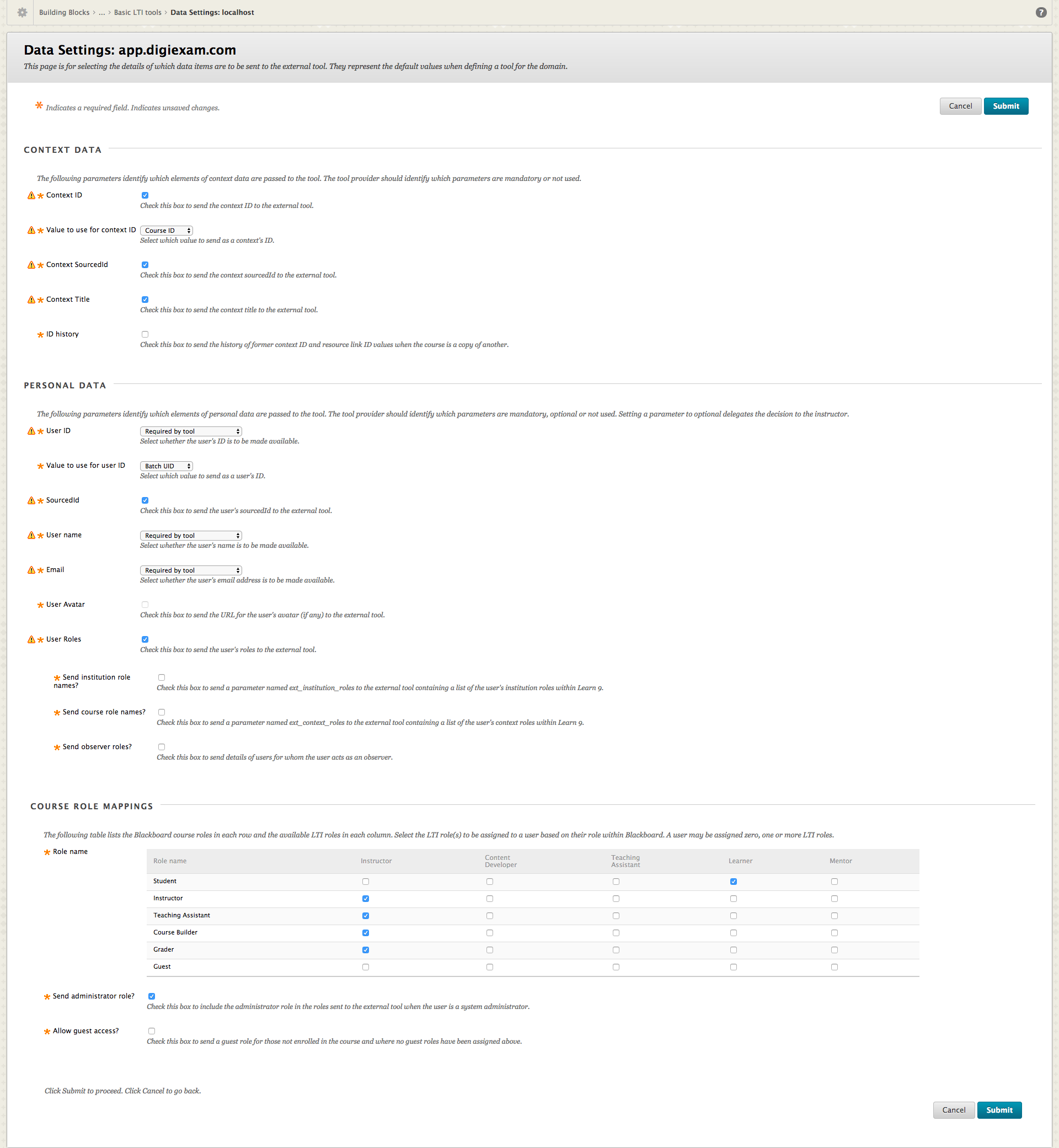

17. Enter the information as seen in figure 32 and then click on the "Submit" button (if you are having trouble seeing the text in the figure, right click on it and choose save as, save it to your computer and open it as a picture, you will then be able to zoom in).
Figure 32

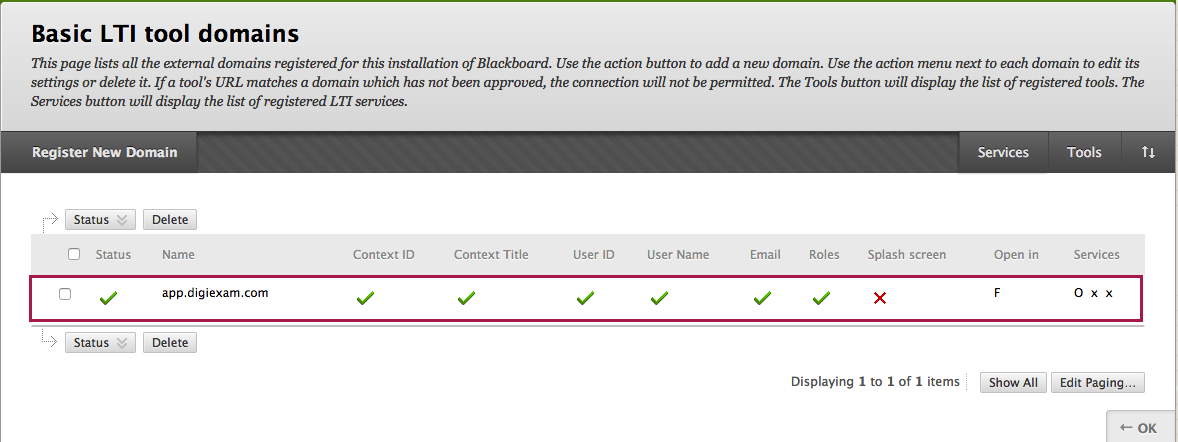

17. If your domain settings now look like the ones in Figure 33 you can click on "OK" in the bottom-right corner.
Figure 33

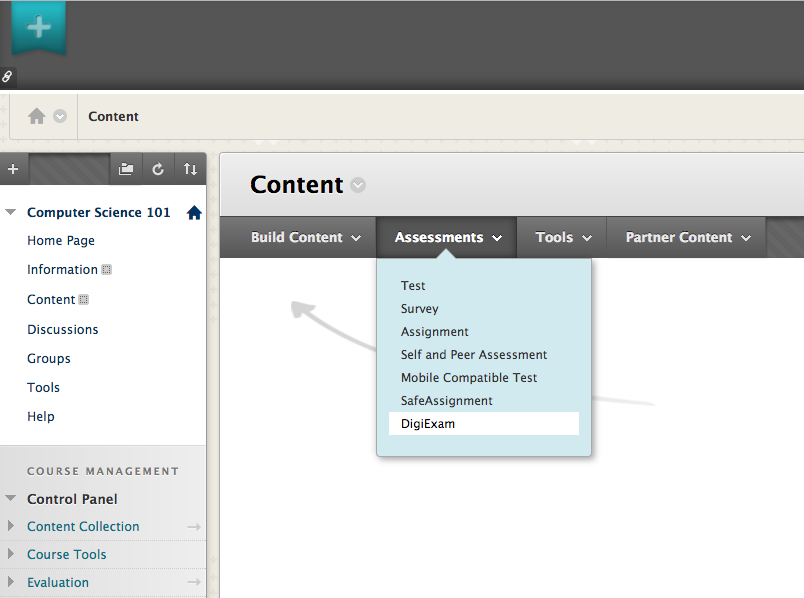

18. After configuring according to the above steps Digiexam will be available in the course content menu (see figure 34)
Figure 34
